Xaws Xov Paj Nplhaib Twister Tshuab

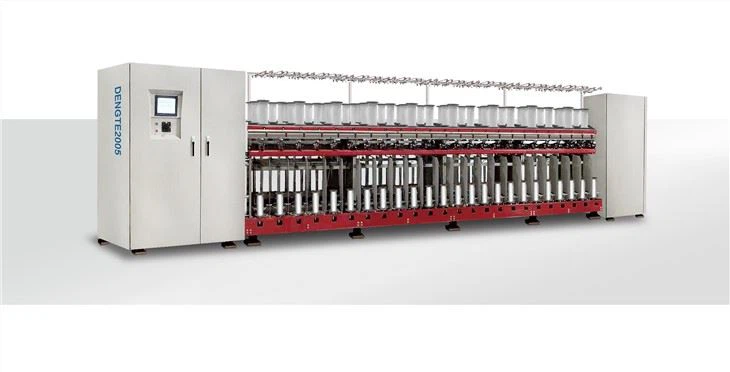

DT2005 Precision CNC Composite Twisting Tshuab xaws xov xov nplhaib twister tshuab
Cov xov paj tiav tuaj yeem ncav cuag cov txheej txheem zoo tshaj plaws hauv ntiaj teb thiab tuaj yeem tsim tawm rau qee yam khoom muaj txiaj ntsig zoo. Peb tseem tuaj yeem lees paub ntau yam kev ua lag luam xws li paj ntaub xov, xaws xov, zipper, kab nra thiab lwm yam raws li cov neeg siv khoom xav tau. Yog tias koj xav tau qee yam xov thiab xov, tsis yog tshuab, koj tuaj yeem hu rau peb thiab qhia peb koj xav tau txog xov lossis xov thiab peb yuav tsim nws raws li koj xav tau.
Cov Xov Paj Zoo
Winch cov menyuam uas tau tsav los ntawm ib qho ntxaiv, ntau dua cov xov xov sib tw, tsis muaj kev tawm dag zog sab nraud, ntau ntu hla ntu;
Zaub ntawm lub khoos phis tawj taug qab ntawm qhov ntxaiv nrawm, xyuas kom raug ntawm ob qho pib thiab sib xyaw sib tw;
Tsis muaj cov khoom siv roj tuaj ntawm kev kub ceev hlau ua, tsis tawg;
NC qhov nrawm nrawm, ua kom cov xov txuas nrawm, ntim qhov hnyav txog 1.6kg.
Ply Suav Ntau Yam:
2×1: 50D—500D
3×1: 50D—1000D
Cov khoom siv rau xaws, paj ntaub, sib txuas xov.
polyester xaws xov ob chav twister tshuab
Spindle arrangement | 2×1 | 3×1 | |
Muab cov ntxaiv NO. (1 ntu) | 36 | 40 | 36 |
Ntiv nplhaib spindle NO. (1 ntu) | 18 | 20 | 12 |
Muab cov ntxaiv NO. (10 ntu) | 360 | 400 | 360 |
Ntiv nplhaib spindle NO. (10 ntu) | 180 | 200 | 120 |
Hnub Tseem Ceeb:
Twist ntau | 650 txog 1250t/m, 3 txog 32t/nti |
Ntsuas kev taw qhia | S lossis Z hloov pauv tau |
Sib dhos xaus | 2-4 |
Ntiv nplhaib | Φ115mm Φ140mm |
Max.winding qhov siab | 330 hli |
Spindle tsav | Tangential bel tsav tsheb |
Hom pib | Stepless ceev tswj los ntawm inverter |
Nqa cov ntxaiv ntsuas | 2 × 1 162mm 180mm 3 × 1270 hli |
Spindle ceev | 6000-7500 rpm |
Muaj peev xwm nqa tau rab phom | 2 × 1 1.1kg 3 × 1 1.6kg lossis 2kg |
Max.installed zog | 16.1 kwv |
Zuag Qhia Tag Nrho | L×W×H=18.84M×1.10M×1.80M |
Cov ntaub ntawv ntsig txog kev lag luam textile
Pab kom tsim kev txawj ntse thiab kev lag luam kev lag luam nrog lub cim tshiab ntawm cov ntaub ntawv thev naus laus zis los ua kom zoo dua qub thiab ntxiv dag zog rau kev lag luam hom ntawm&"qingfanglian &";
Nrog Tuam Tshoj' thoob ntiaj teb kev cuam tshuam, kev txhim kho tib neeg' kev ua neej zoo thiab kev hloov pauv ntawm kev siv tswv yim, kev ua tau zoo thiab muaj txiaj ntsig zoo ntawm cov khoom siv textile tau txais kev nyiam los ntawm cov neeg siv ntau thiab ntau dua .
Yog li ntawd, Qingfang Federation yuav txuas ntxiv nws qhov R& D thiab cov txiaj ntsig zoo ntawm kev sib xyaw ua ke sib txawv ntawm kev ua haujlwm ntawm textiles, tsom mus rau kev thov tshiab ntawm cov cuab yeej tsim khoom lag luam zoo tshaj plaws hauv qhov xwm txheej ntawm cov khoom lag luam loj loj, tsom mus rau cov ntaub ntawv tshiab, txheej txheem tshiab thiab cov khoom lag luam tshiab, thiab raws li qhov digitization ntawm textile cov cuab yeej thiab cov ntaub ntawv sib cuam tshuam, Ua kom nrawm rau kev nqis peev hauv kev tsim kho digital thiab ntse rhiav rau tag nrho cov txheej txheem ntawm kev sib tw ntau lawm hauv Taierzhuang chaw tsim khoom. Thawj theem npaj los nqis peev 20 lab nyiaj, nrog rau kev hloov pauv digital ntawm kev ua kom muaj kev lag luam ua lub hauv paus, paub txog kev sib koom ua ke ntawm kev tsim qauv thiab R& amp; D, kev tsim khoom thiab kev tsim khoom, kev tswj hwm kev lag luam, kev lag luam thiab kev txiav txim siab kev lag luam hauv thaj chaw ntse, tsim kev lag luam qauv qauv kev lag luam, tshawb nrhiav thiab ua tiav cov kev pabcuam tshwj xeeb thiab kev ua haujlwm nyob deb thiab kev saib xyuas cov kev pabcuam, thiab txhim kho lub peev xwm ntawm kev tsim qauv thiab sib koom tsim khoom ; Ua tiav qib siab ntawm kev sib koom ua ke ntawm kev tsim khoom thiab kev thov hauv khw.
Ib qho ntxiv, Qingfang Federation tseem yuav tso siab rau cov khoom lag luam textile Valley kev lag luam, sib koom ua ke rau hauv RCEP Qingdao Kev lag luam thiab kev koom tes ua lag luam thawj qhov kev sim ua lub hauv paus zoo, thiab koom nrog thiab txhawb kev tsim kho hauv cheeb tsam textile thiab khaub ncaws kev lag luam internet platform - Fanglian huab thiab textile raw khoom ntau kev lag luam pauv chaw. Siv Internet ntawm yam kev xav los tsim kom yooj yim, muaj txiaj ntsig thiab muaj txiaj ntsig ntsuab cov saw hlau thiab cov khoom lag luam ecological; Nyob rau tib lub sijhawm, rau Nyij Pooj, Kaus Lim Qab Teb thiab Sab Qab Teb Hnub Tuaj Asia, txhawb kev tsim kho cov lag luam hauv cheeb tsam xws li kev siv nyiaj ntau los ntawm cov khoom lag luam textile thiab cov khoom siv nyiaj txiag, nthuav cov kev pabcuam ntxiv xws li hom thiab thev naus laus zis, thiab txhawb kev hloov pauv ntawm tuam txhab' kev lag luam ib txwm muaj rau kev lag luam digital.
Cim npe nrov: xaws xov xov nplhaib twister tshuab, Suav teb, manufacturers, lwm tus neeg, Hoobkas
